Quick Details

  • Type: Heat Press Machine
  • Condition: New
  • Plate Type: Letterpress
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: innovo
  • Model Number: ZXTM-1080-G
  • Usage: Bill Printer, Card Printer, Label Printer, Paper Printer
  • Automatic Grade: Automatic
  • Color & Page: Multicolor
  • Voltage: 380V
  • Gross Power: 40kw
  • Dimensions(L*W*H): 6070*4040*2460mm
  • Weight: 18000kg
  • Certification: CE Certificate
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Max. Paper Size: 1080*780mm
  • Min. Paper Size: 400*370mm
  • Max. Die cutting Size: 1070*770mm
  • Max. Stamping Range: 1060*760mm
  • Max. die cutting Speed: 7000s/h

Packaging & Delivery

Packaging Details wooden case
Delivery Time 30 days
Product Description

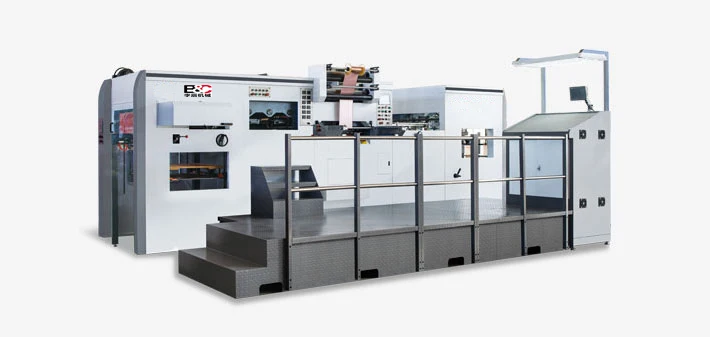

ZXTM-1080-G Automatic Foil Stamping & Die-Cutting Machine








Introduction:

This automatic foil stamping and die-cutting machine is the key equipments in the post-print foil stamping process for cardboard box. Better than the traditional foil stamping equipment, the automatic machine has the advantages of high speed, large quantity, high security coefficient, high accuracy. It can produce various of beautiful packing boxes with foil stamping. This machine adopts the international advanced technique, which has the high level of stability. We select and use the imported international famous brands for all electric appliances piece, standard parts and key components, such as, programmable controller, frequency converter, human-computer interface, screws, bearings, chains, bent axle, worm wheel etc.



Features:

1.Adopt the intermittent organization in high accuracy to position the system with high accuracy, make machine's movement more steady, fixed position more accurate.
2. PLC electricity control system that apply the electronics cam, making the procedure of the whole machine action's control more accurate, adjusting more convenient.
3. The adoption man-machine interface monitors to show the system, making the machine circulate the appearance to is clear at a glance, breaking down the manifestation, breaking down the exclusion with proficiency, real realizes person machine dialogue, person machine exchanges.
4. The adoption imports the spirit moves the clutch, the life span is long, the noise is low, leaving to match, system moves more steady.Pneumatic sampling system makes the sample-checking more convenient.
5. All the electric unit, bearing, fastener , chain adopt imported famous brand products , ensuring precision and life.
6. All the electric units are the products that have got CE certificate , every safeguard coincides with CE Standard, safe and reliable.
7. The lord spreads to move the lubrication system adoption strong breeze cools off the device, making machine caned also develop in heat long hours worked out efficiency.
8. Adopting imported servo-motor and computer for foil control system, foil convey and tension is constant.
9. The foil can step, which greatly meet client's needs in various stamping. Twelve heating zones can be set individually and in constant temperature.



Specification:

Model

TMY1080-H

Max. Paper Size

1080*780mm

Min. Paper Size

400*370mm

Max. Die cutting Size

1070*770mm

Max. Stamping Range

1060*760mm

Max. die cutting Speed

7000s/h

Max. tamping Speed

6000s/h

Max. Feeding Pile

1100mm

Max. Delivery Pile

1040mm

Sheet Thickness

Cardboard:0.1-3mm Corrugated board:≤4mm

Die-Cutting Precision

±0.12mm

Stamping Temperature

0~200

Heating Plate Zone Number

12

NO. of Foil Rollers

Three vertical and two horizontal

Max. Length

1800~2200m

Max. Pressure

320t

Total Weight

18t

Heating Plate Zone Power

18kw

Total Power

40kw

Overall Dimension

6070×4040×2460mm

Vertical foil stamping section performance specification

Max. foil width

1060mm

Min. foil width

25mm

Max. length of pull foil

760mm

Max. pull foil roll diameter

φ200mm

Horizontal foil stamping section performance specification

Max. foil width

730mm

Min. foil width

25mm

Max. length of pull foil

1060mm

Max. pull foil roll diameter

φ240mm





Detailed introduction:





























Packaging & Shipping

1. The packing is confirm to export wooden case standard, strong and durable. The                    wooden case’s thickness is generally 1 cm.

2. In order to be waterproof, we usually use bubble film to wrap machine.

3. We can handle shipping for customers too.







Our Services

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.

Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.

Company Information

*With 10 years' Experience

*Having ISO 9001-Certified Factory

*Strong R&D capability

*High Quality Guaranteed

*First Class Service And Best Prices

*Primary products:

    Automatic High Speed Flute Laminater

    ZXSCM Book Case Making Machine

    650UV Coating Machine

    ZX-650C Manual Paper Pasting Machine

    Box Making Machine

    Hot Melt Gluing Machine and Gluing Machine

    Table Gluing Machine

    Paper Pressing Machine.etc

    Welcome to visit our factory!



FAQ

1.What is Innovo company machine warranty?----one year.

2.Does your machine with CE certificate?----Yes.

3.What is the production time while placing order?----Arounding 7-30 days

4.What is the delivery time?----Within 7-30 days after get the payment.

5.Can Innovo company handle shipping for customers?----Yes.(Please provide us your requested seaport and we can        check the shipping charge and arrange shipping for your order)

6.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case, all are confirm to          export packing standard.

7.How about after-sales service process?----When your machine has problem, contact your sales and we will solve your    problem as soon as possible.

8.Are you a manufacturer?----Yes, we are a manufacturer with 10-year experience and profession.

9.What is the minimum quantity for order?----Trial order 1 pc is acceptable, we done business step by step with high            quality products and excellent services.

10Do you have stock product to sell?----Maybe, It depends on which machine you like.

11Do you inspect the finished products?----Yes, each step of production products will be picked out inspection by QC         department before  shipping.

12.What’s the payment term?----T/T 30% in advance, the balance paid against the copy of B/L. We accept payment via              West Union too. You can choose as you like.
