Quick Details

  • Type: Laminating Machine
  • Condition: New
  • Application: Commodity, Food, Machinery & Hardware, Medical, Textiles
  • Packaging Type: Cartons, Case
  • Packaging Material: Wood
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 380V
  • Power: 15kw
  • Place of Origin: China (Mainland)
  • Brand Name: Innovo
  • Model Number: 1450
  • Dimension(L*W*H): 9600(L)*2850(W)*3300(H)
  • Weight: 9500kg
  • Certification: CE SGS
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 12 Months
  • Delivery TIME: 30days
  • Maximum paper:: Width 1300mm*length 700mm
  • Minimum paper:: Width 500mm*length 300mm
  • Down paper thickness:: 300g-8mm thickness
  • Surface paper thickness:: 150g-700g

Packaging & Delivery

Packaging Details wooden case
Delivery Time 30 days
Product Description

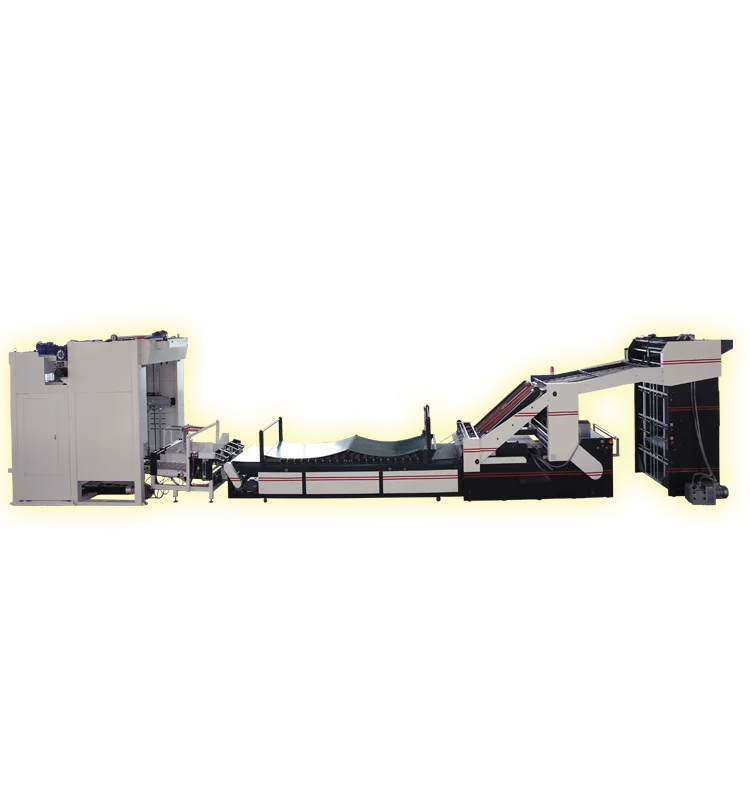

Automatic High Speed Flute Laminator With Auto Rolling-over Machine




Multi Function Automatic High Speed Flute Laminating Machine



Max.speed: 10000sheet/hour



1.1 Overview

This machine is designed for pre-compliance with regulations chase block positioner fit, side road in regulation for fixed positioning control precision fit, and the use of variable speed so that its structure is simple, easy to operate. Suitable for corrugated paper and cardboard, the cardboard and cardboard, make cardboard more striking, beautiful, high-intensity, high-quality paperboard production of new equipment. Widely used in food, wine, home appliances, light industrial products packaging.



1.2. The main technical parameters



Machine Model:

FM1307

FM1310



Maximum paper:

Width 1300mm*length 700mm

Width 1300mm*length1000mm



Minimum paper:

Width 500mm*length 300mm

Width 500mm*length 300mm



Down paper thickness:

300g-8mm thickness

300g-8mm thickness



Surface paper thickness:

150g-700g

150g-700g



Maximum speed:

10000 pcs/h

7800pcs/h



Fitting accuracy:

plus or minus 0.5mm (standard flat paper)



Apply glue:

resin glue, starch paper jam glue, etc. (PH6-8 use bonding glue)



Weight:

6500Kg



Power supply:

380VAC/3P



Power:

20Kw to work 13Kw



Applicable paper:

Thin paper, cardboard, coated paper, gray cardboard, thick cardboard, etc.



Applicable corrugated:

High strength formal single A, B, E, F three, five etc. mounted paper Lenz



1.3 Series Product Description:

   1. This machine stations and body are all made by large processing center and complete in one time to ensure the accuracy of each station and equipment operation more stable.

   2. Cardboard feed mechanism: Configuring high speed dedicated feeder head, regardless of thick or thin paper it can ensure the paper feed speed and smooth.

   3. Cardboard lifts: In line with the high-speed feeder, equipped high strength worm reducer, to ensure the instant speed stability.

   4. Cardboard loader: The E-type double-notch unique design, the production of paper can be pushed directly into the hand truck, shorten the stacking paper time and improve efficiency.

   5. The end of the paper system: servo motor control system, high sensitivity, high speed, to ensure the smooth end of paper out of paper, no paper jams and other characteristics.

   6. The end of paper adsorption system: Frequency jams and agility with the solenoid switch, to ensure that the end of paper completely adsorbed, and the operation is simple.

   7. Glue wheel: thick plated steel wheels, fine grinding surface, adjustable amount of glue to 8g / sq.m., ensure a uniform thickness of paper glue.

   8. Glue supplement: The liquid level control, to ensure that the glue is automatically added, to ensure continuous production.

   9. Paper Separation: For high-speed operation, using the separation claw, making glued paper detach from the glue wheel effectively.

   10. Fit Positioning: Positioning prepositive mode, left and right sides both have side block rules, ensuring high-speed precision fit.

   11. Transmission: imported from Germany, chain and belt drive, ensure the drive precise, stable and low noise.

   12. Operating system: Use HMI touch screen as operations center, connected to PLC, so it can warn the information to detect failure, abnormal condition and operating speed displayed on the screen, at a glance, and the ability to detect maintenance, work records, online Live View in time, truly reflect efficiency.

   13. Electrical system: well-known brands, designed in accordance with the European CE standard, careful manufacture, ensure the machine stability, high efficiency, low failure.



1.4 More Photo

1.Back Photo

2.Belt Photo





























Automatic rolling-over machine

With the high speed flute laminator using, and collect the paper automatically. Save time and effort, improve the production efficiency.



Performance:

            1. Can be positive and negative paper receiver alternately

            2. Paper stacking height between 1.6m-1.8m

            3. The quantity of rolling-over according to paper thickness.

            4. The speed is 8000-12000 sheet/hour.





Operating principle:







Specification:


1,
1450Technical parameters and configuration





1. Technical parameters

Max. paper size: 1450×1200

Min. paper size:500×500

Speed:6000sheet/hour

Max. power:2 plus 7.5KW

Net weight:1500kg

Machine size:4500×2500×2900(L×W×H)

Adaptive paper:According to the laminator

Ground rack;1200



2.Stardard Accessories

 3.Machine configuration:



NO

Description

Quantity

Remark

1

Brake Motors

CPG



2

Air cylinder,solenoid valve

AIR TAC



3

Contactor

Schneider



4

Intermediate relay

Weidmuller

Germany

5

PLC

FATEK

Taiwan

6

Air switch

LG

Korea

7

Sensor

Omron

Japan

8

Air compressor

Xingbao





4.Power meter



NO

Description

Quantity

Remark

1

Tilt Motor

1.5KW



2

Lifting motor

0.75KW



3

Subsidies motor

0.4KW



4

Side beat paper adjustment  motor

90W



5

Back beat paper adjustment motor

90W



6

Air compressor

4KW

Optional





2,1650 Technical parameters and configuration



1. Technical parameters:

Max. paper size:1650×1650

Min. paper size:600×600

Speed:6000sheet/hour

Max. power:6.6KW

Net weight:2500kg

Machine size:6200*2500*2900(L*W*H)

Adaptive paper: According to the laminator

(Ground rack:1650)



2. Stardard Accessories:



3. Machine configuration:

4. Power meter





Packaging & Shipping

1. The packing is confirm to export wooden case standard, strong and durable. The                    wooden case’s thickness is generally 1 cm.

2. In order to be waterproof, we usually use bubble film to wrap machine.

3. We can handle shipping for customers too.







Our Services

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.

Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
